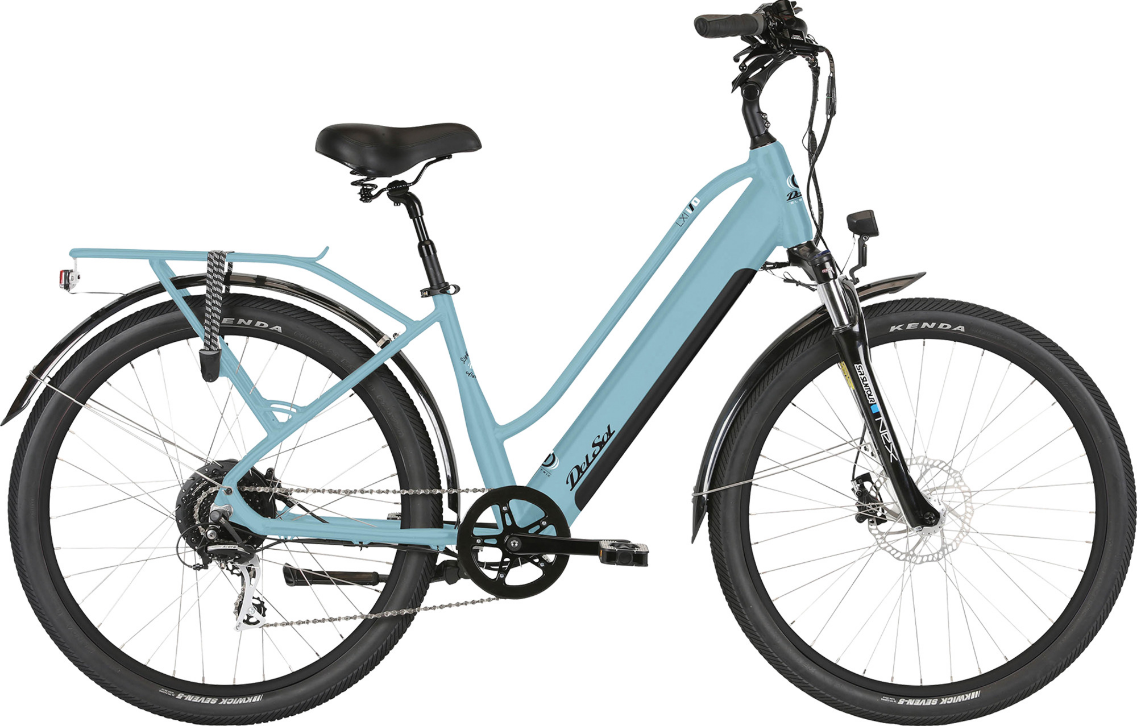

Del Sol Spring Sale! LXI T IO STEP THROUGH

Del Sol Spring Sale! LXI T IO STEP THROUGH
Please select options Unavailable
This item can be purchased online and picked up at your convenience.


Frame: LXI i/O ST | 6061 heat-treated aluminum | Tig-welded construction | Fully internal battery | Internal e-bike wiring | 73mm threaded BSA bottom bracket shell | Post mount disc tab | Hub-drive specific 136mm spacing

Fork: SR Suntour | SF20 NEX-HLO-DS | 63mm travel | Lightweight alloy crown and monocoque lowers | Weather-sealed stanchion protection | Plush coil spring with adjustable preload | Hydraulic Lockout | Post-mount disc brake
Crankset: 3-piece | Forged alloy | 42T chainring with dual-guide design

Pedals: Comfort | Shock-absorbing Kraton inserts

Chain: KMC Z8.3 | 8-speed

Bottom Bracket: 73mm threaded BSA shell | JIS square taper | Sealed cartridge

Rear Derailleur: Shimano Acera M360 | 8-speed | Long cage

Derailleur Shifter(s): Shimano Acera Rapidfire Plus | 8-speed

Cassette: Shimano HG-31 | 11-32T | 8-speed

Drive Unit: Bafang 350w Hub Motor

Battery: 36V/14.5Ah | 522Wh | Fully-integrated within down tube

Tires: Kenda Kwick Seven.5 | 27.5 x 2.2"

Rims: Alloy | Width (internal): 26.6mm | Double-wall construction | 36h

Hubs: "Front: Alloy | 100mm quick release | I.S. 6-bolt disc | 36h

Rear: Bafang 350W motor | I.S. 6-bolt disc mount | 136mm spacing | 36h"

Spokes: Stainless | 13g

Brakes: Tektro HD-E390 | E-bike specific | 5mm extra-thick brake pads | Heat-reducing external metallic banjo fitting | Brake-pad wear electronic display indicator | 203mm oversized front / 180mm oversized rear with 2.3mm extra-thick, I.S. 6-bolt rotors

Brake Lever: Tektro HD-E390 hydraulic
Grips | Tape: Del Sol Ergo Comfort | Dual Density

Handlebar: Alloy | 40mm rise | 610mm wide

Stem: Alloy | Threadless | Tool-free adjustable 0-70° angle | 110mm length

Headset: 1-1/8" integrated | Threadless

Saddle: Del Sol Couch Plus saddle | Compression-tuned elastomers | Del Sol Hand-Holder e-bike-specific handle

Seat Post: Alloy | Suspension | 40mm travel | 27.2 x 300mm
Seat Post Clamp: Alloy | 31.8mm

Extras: Kickstand | Alloy Rack | Full-Coverage Fenders | Front and rear lights, Charger & cables
